Victron BAT548110620 Lithium NG series LiFePO4 Battery 51,2V/100Ah NG

Available Mid August - Get your pre-Orders in now to secure availability

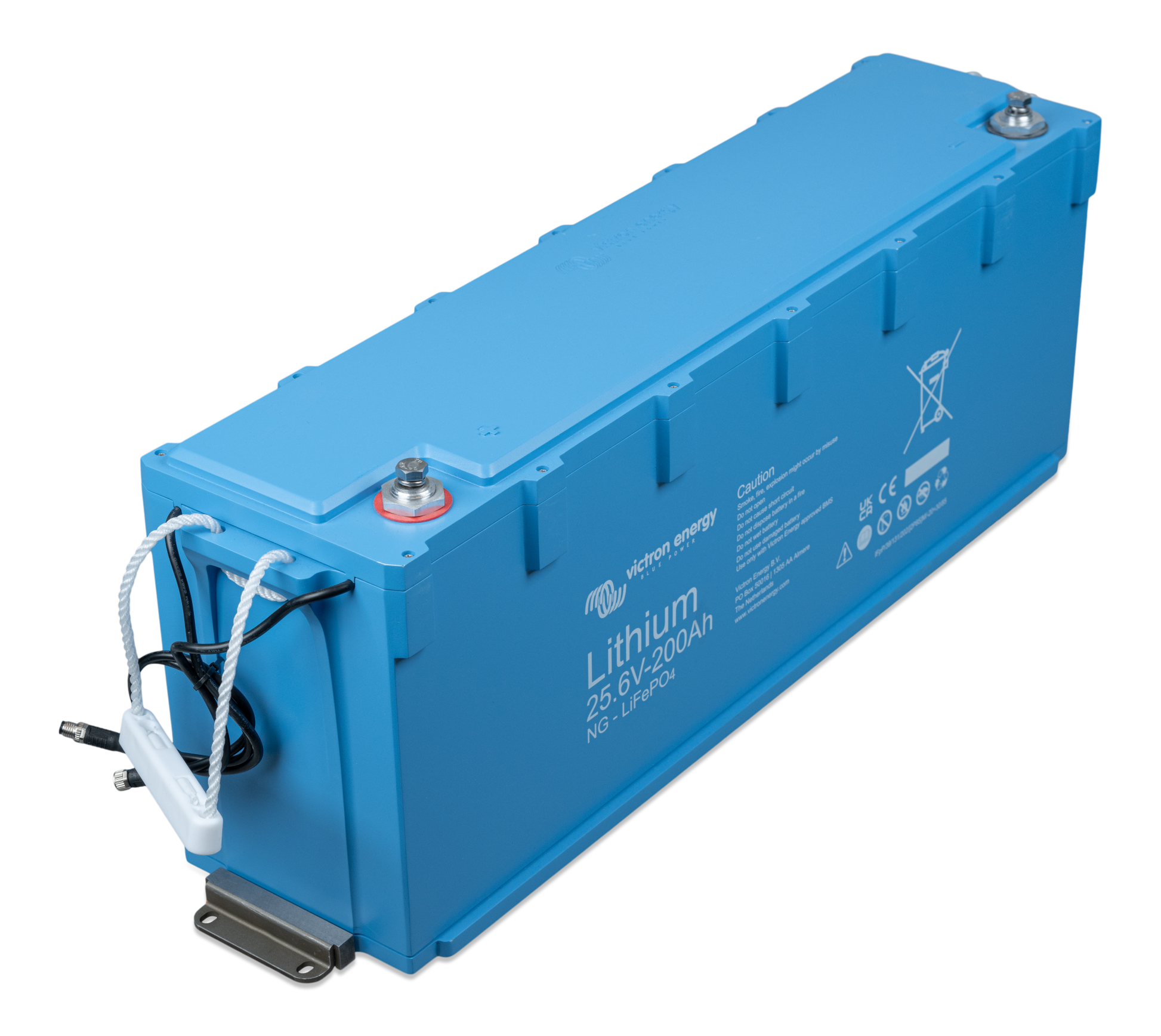

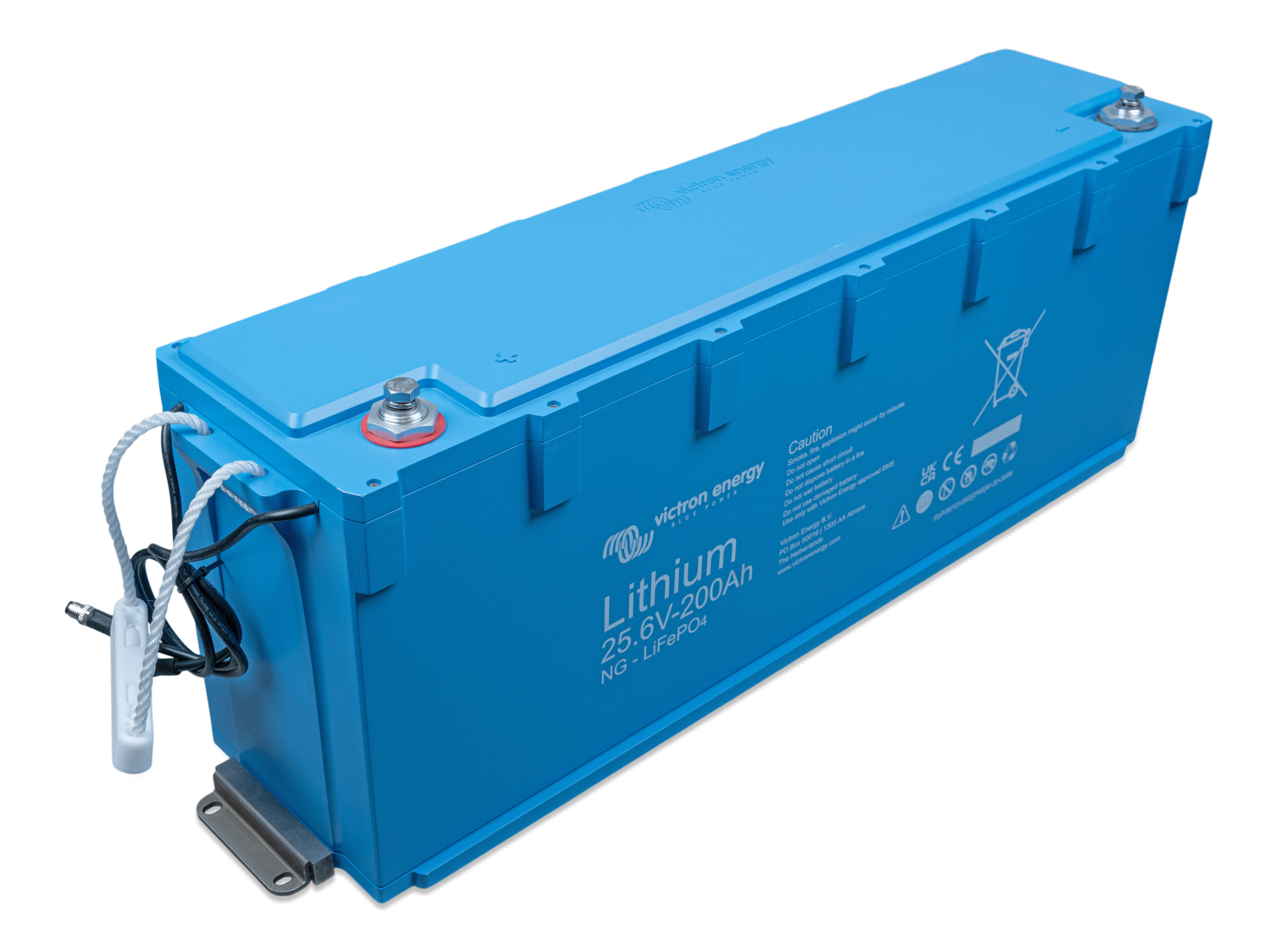

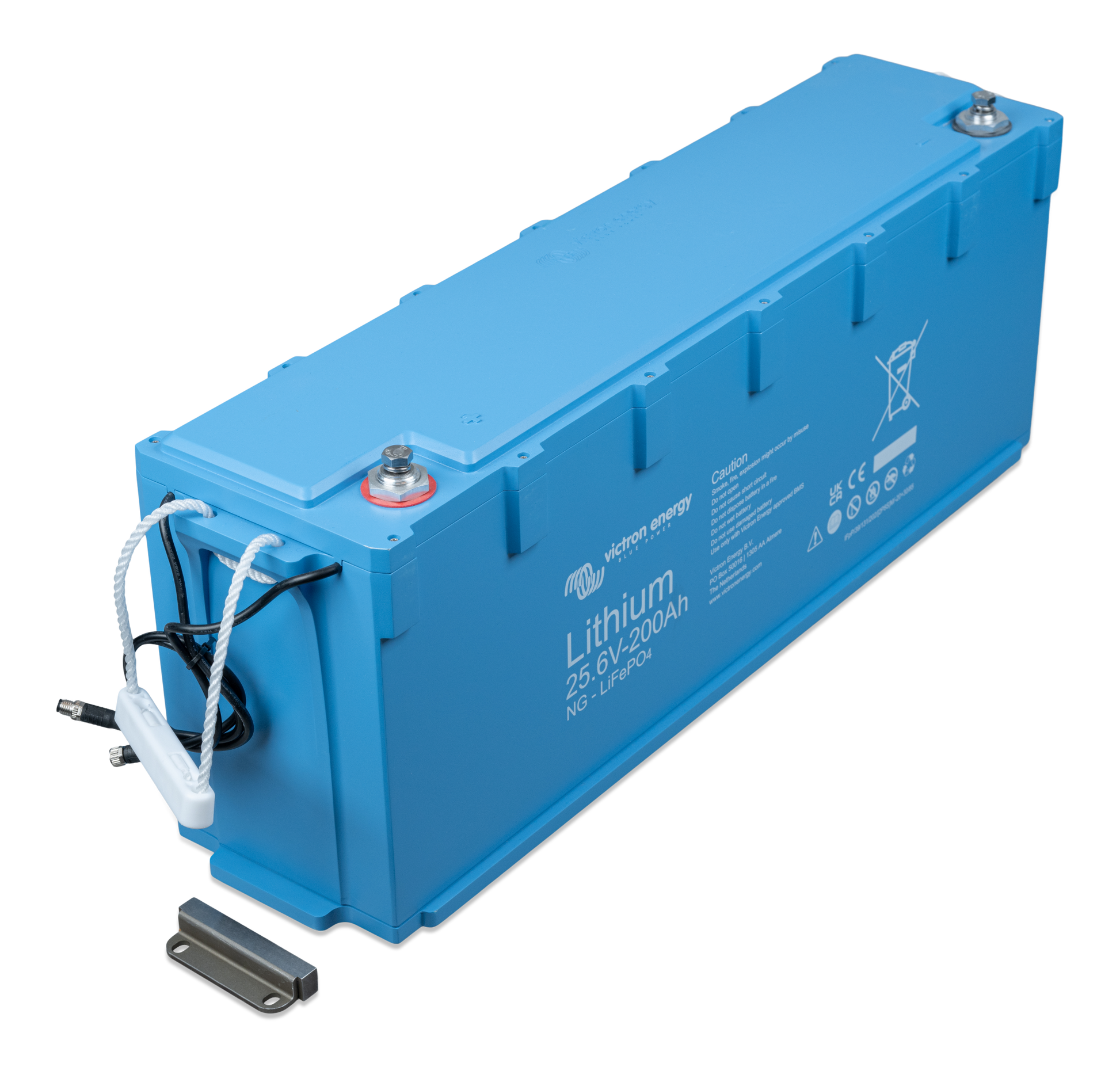

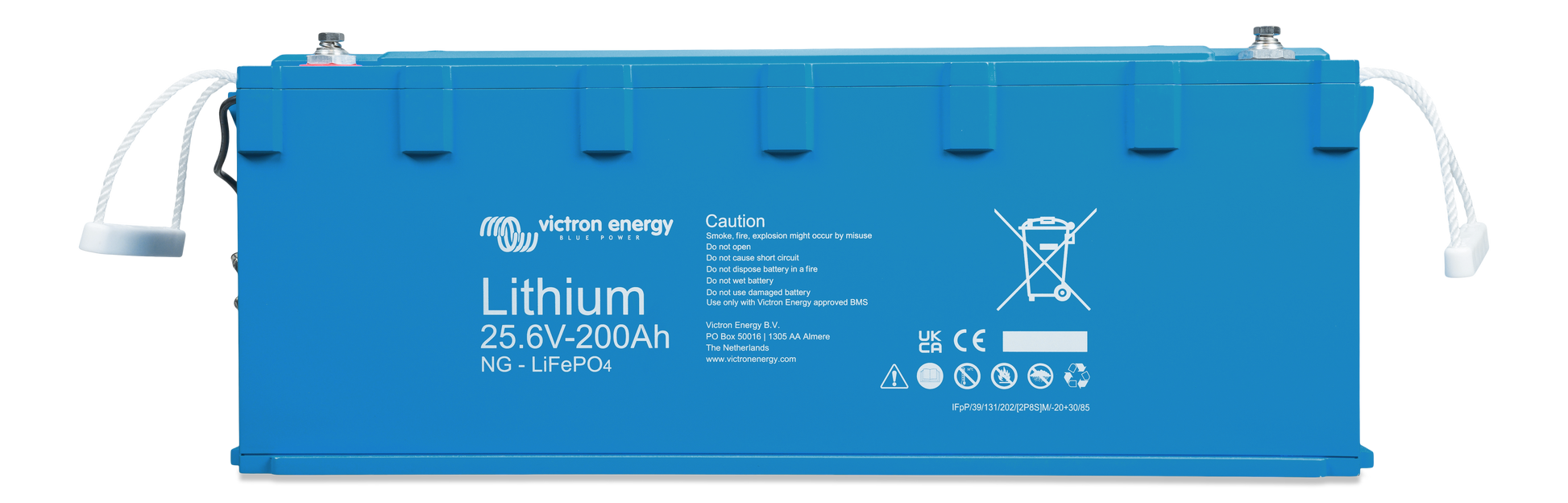

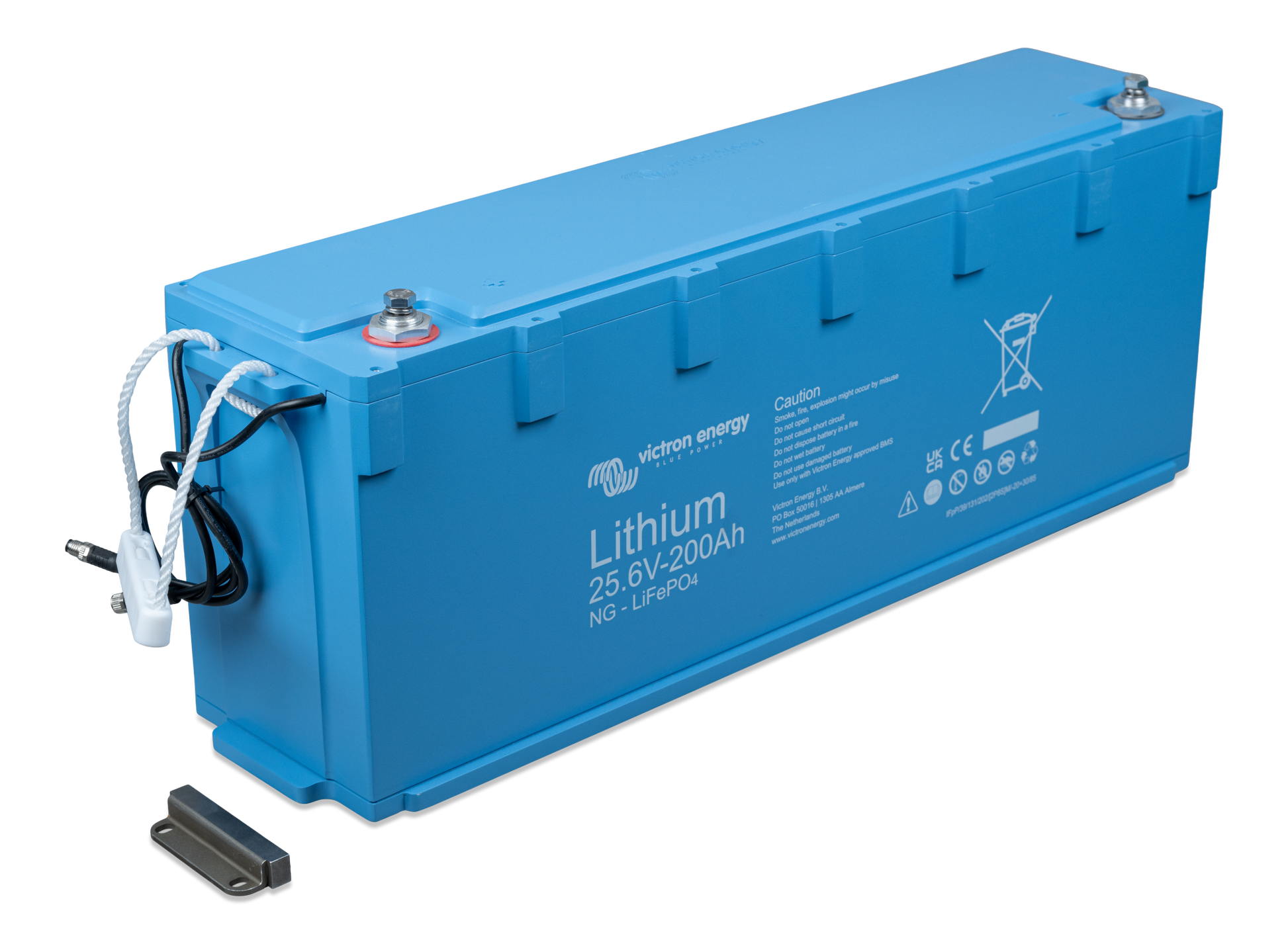

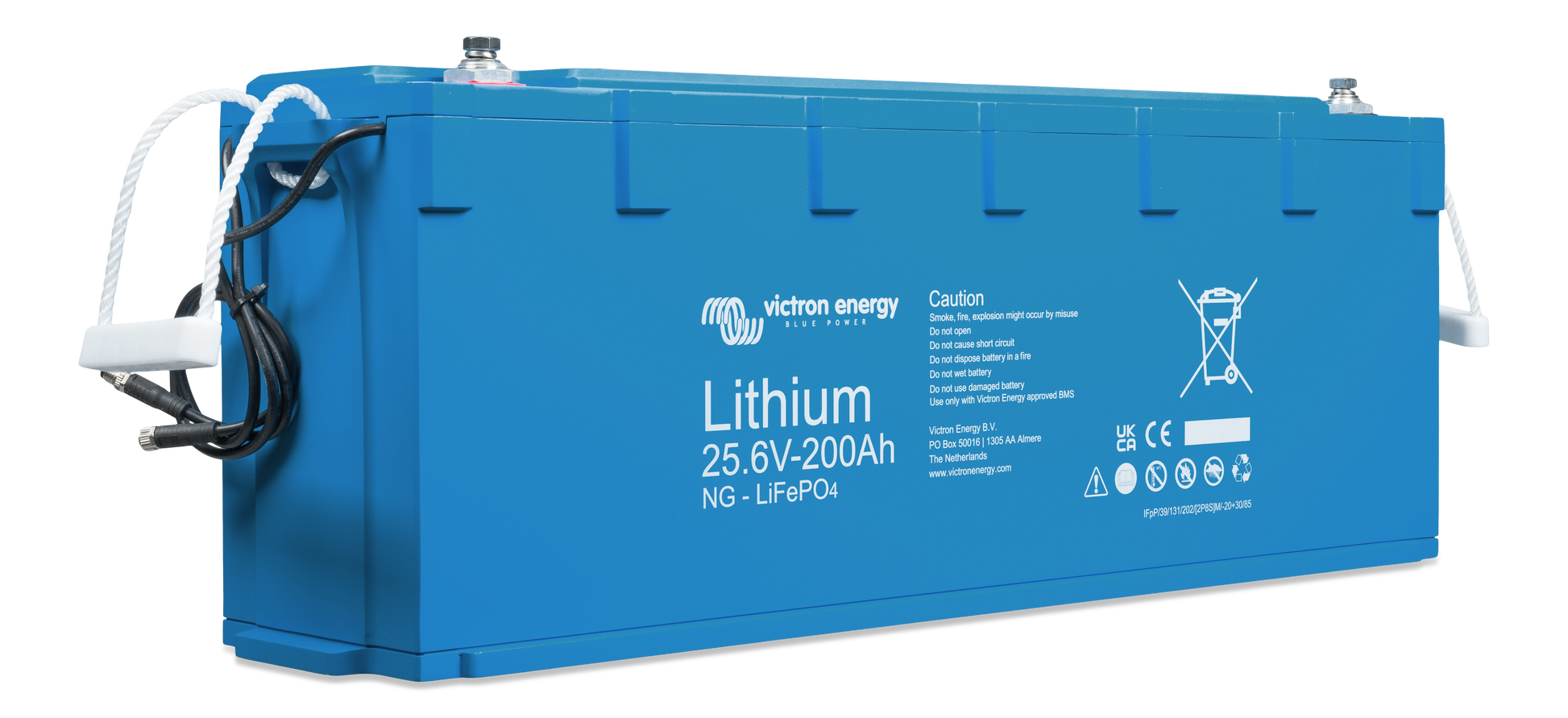

The pictures show the 25.6V 200ah battery which is the same case size and weight as the 51.2V 100ah battery.

Victron BAT548110620 Lithium NG series LiFePO4 Battery 51,2V/100Ah NG

NOTE: A NG Series BMS is REQUIRED

Building upon the success of Victron's Lithium Smart Series, the NG (Next Generation) series incorporates significant enhancements.

Highlights:

• Multiple improvements including added read-out of cell voltages and temperatures;
• Maximum single bank size increased to 385kWh;
• Modules available in 12, 24 and 48V;
• Protection class IP65;

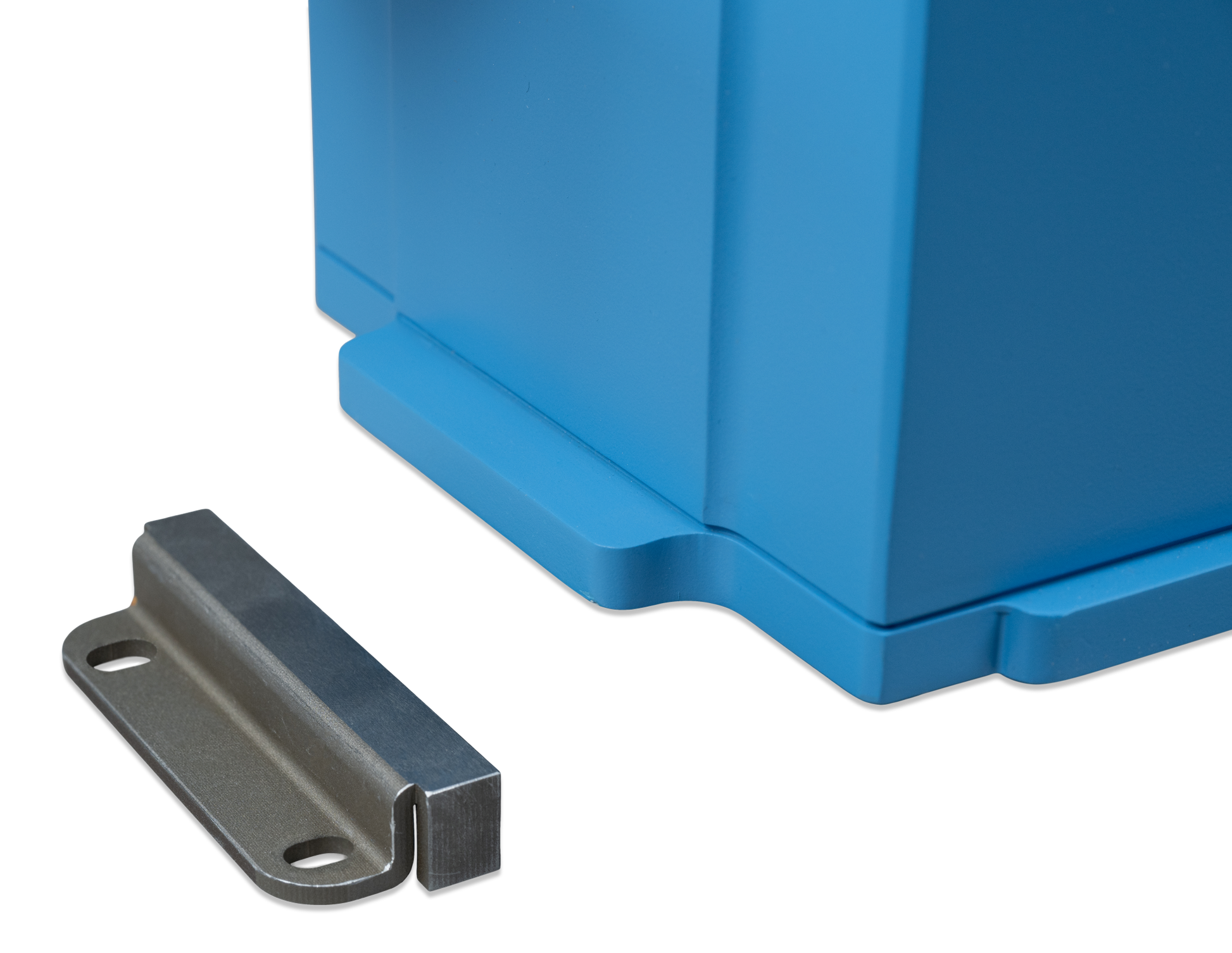

• Bracket mounting and strap mounting.

Tailored for those seeking advanced and reliable energy storage, the Lithium NG series marks a pivotal advancement in our product lineup, ready to meet the demands of tomorrow.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO₄ or LFP) batteries
available in various capacities with nominal voltages of 12.8 V, 25.6 V and 51.2 V. They can be connected in series, parallel, or a combination of both to create battery banks for system voltages of 12V, 24V, or 48V. A maximum of 50 batteries can be used when configuring a bank with 12V or 24V batteries, while up to 25 batteries can be used with 48V batteries. This allows for a maximum energy storage capacity of 192 kWh with 12V batteries, up to 384 kWh with 24V batteries, and 128 kWh with 48V batteries.


Lithium NG battery datasheet
