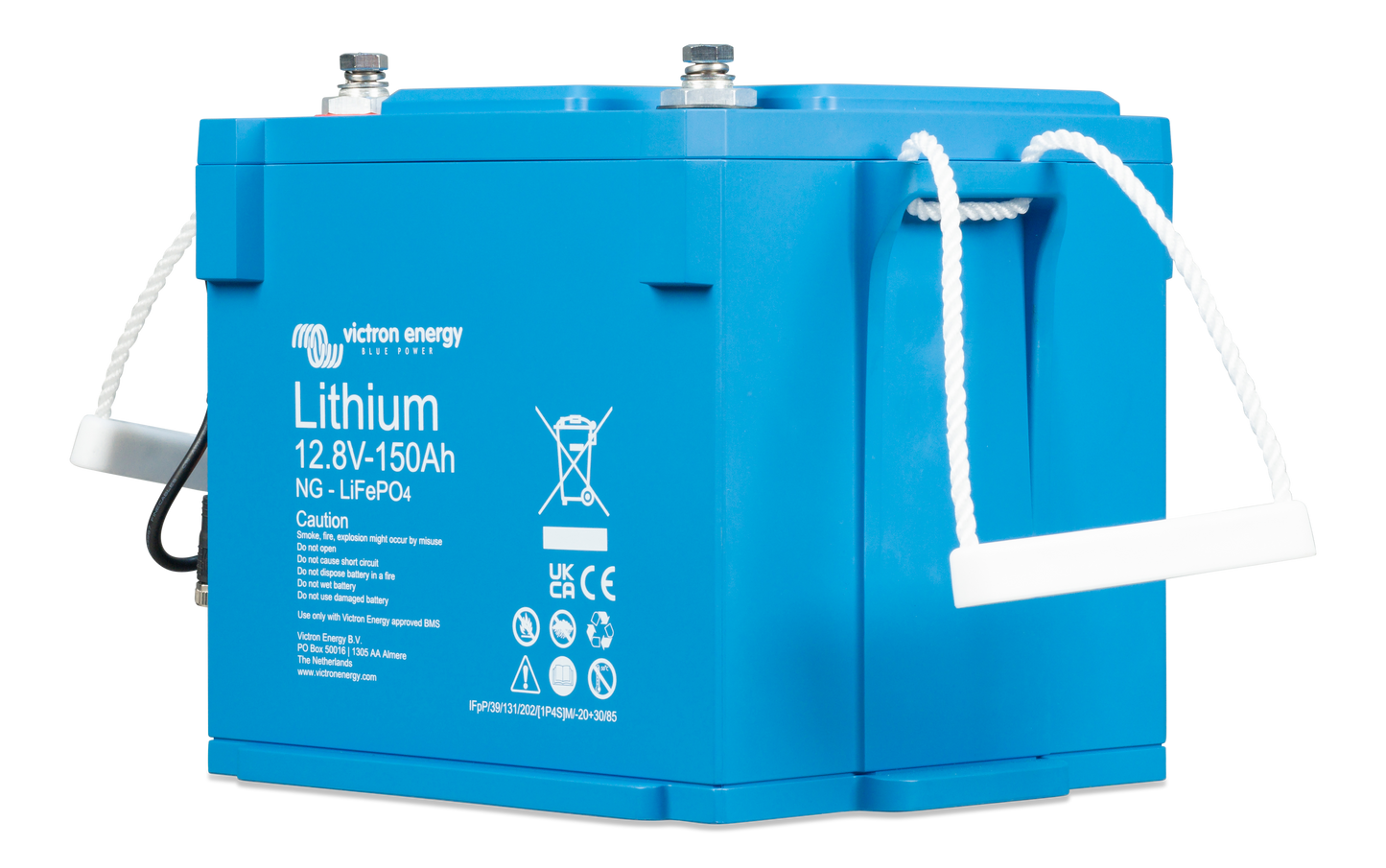

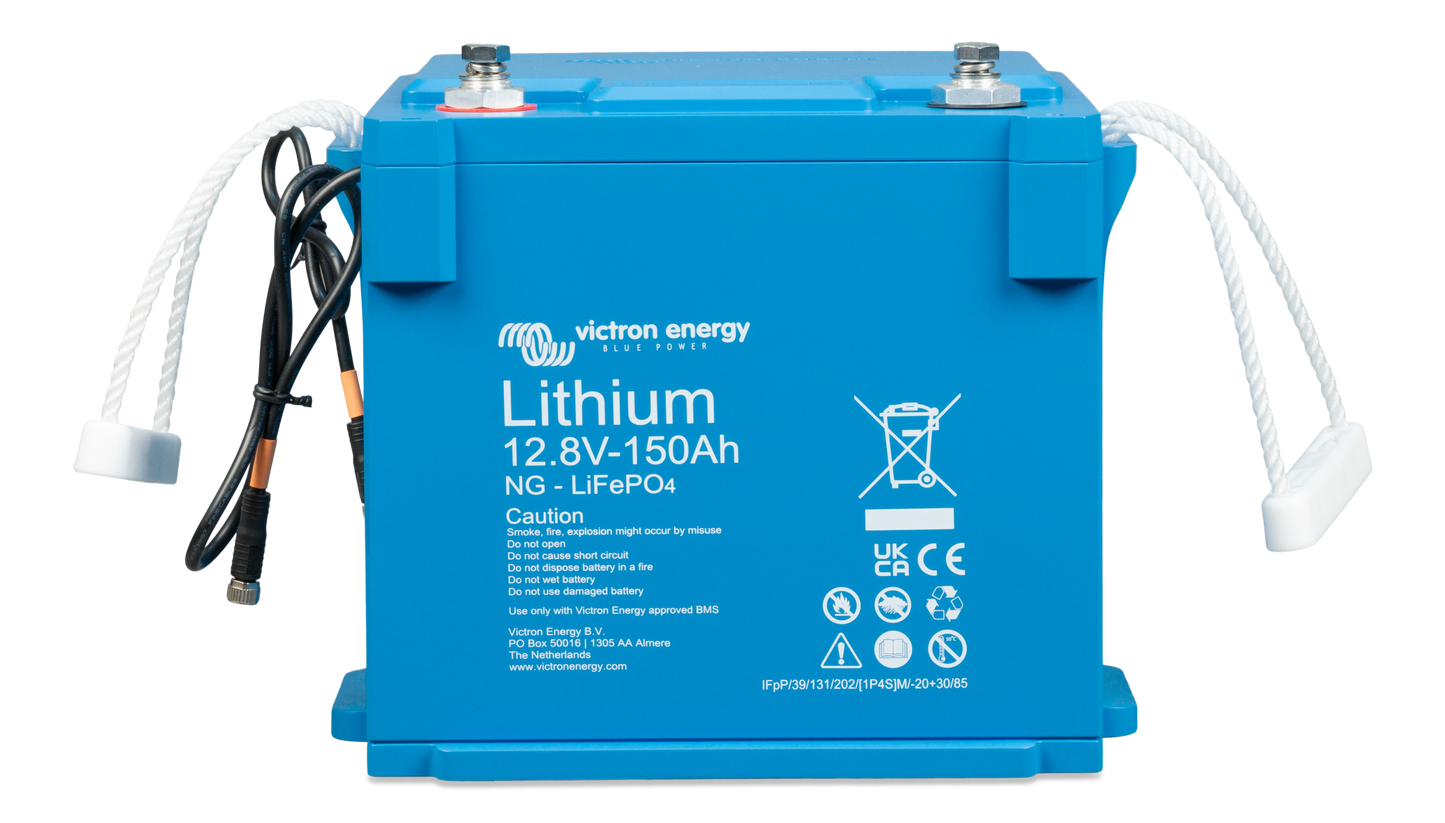

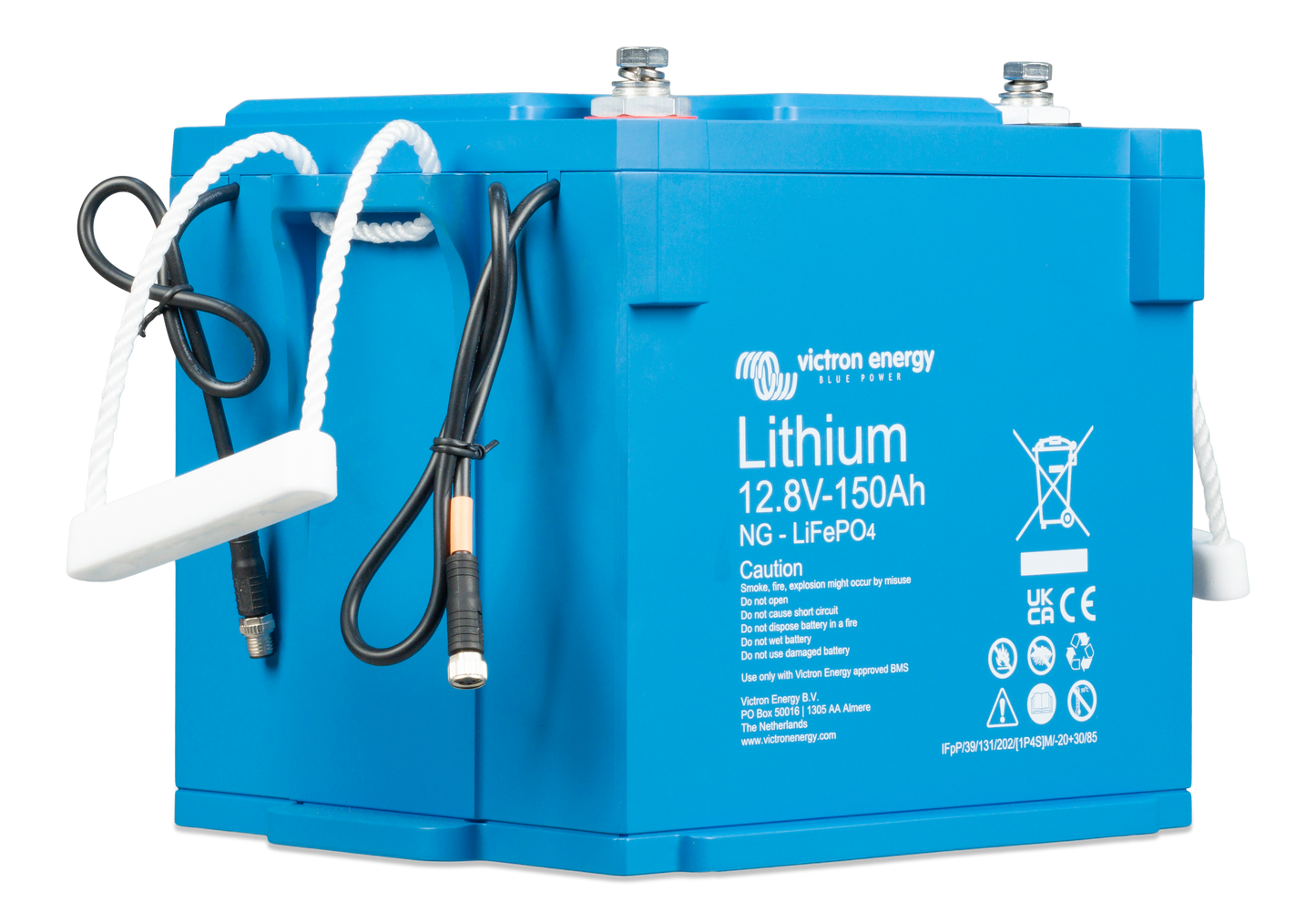

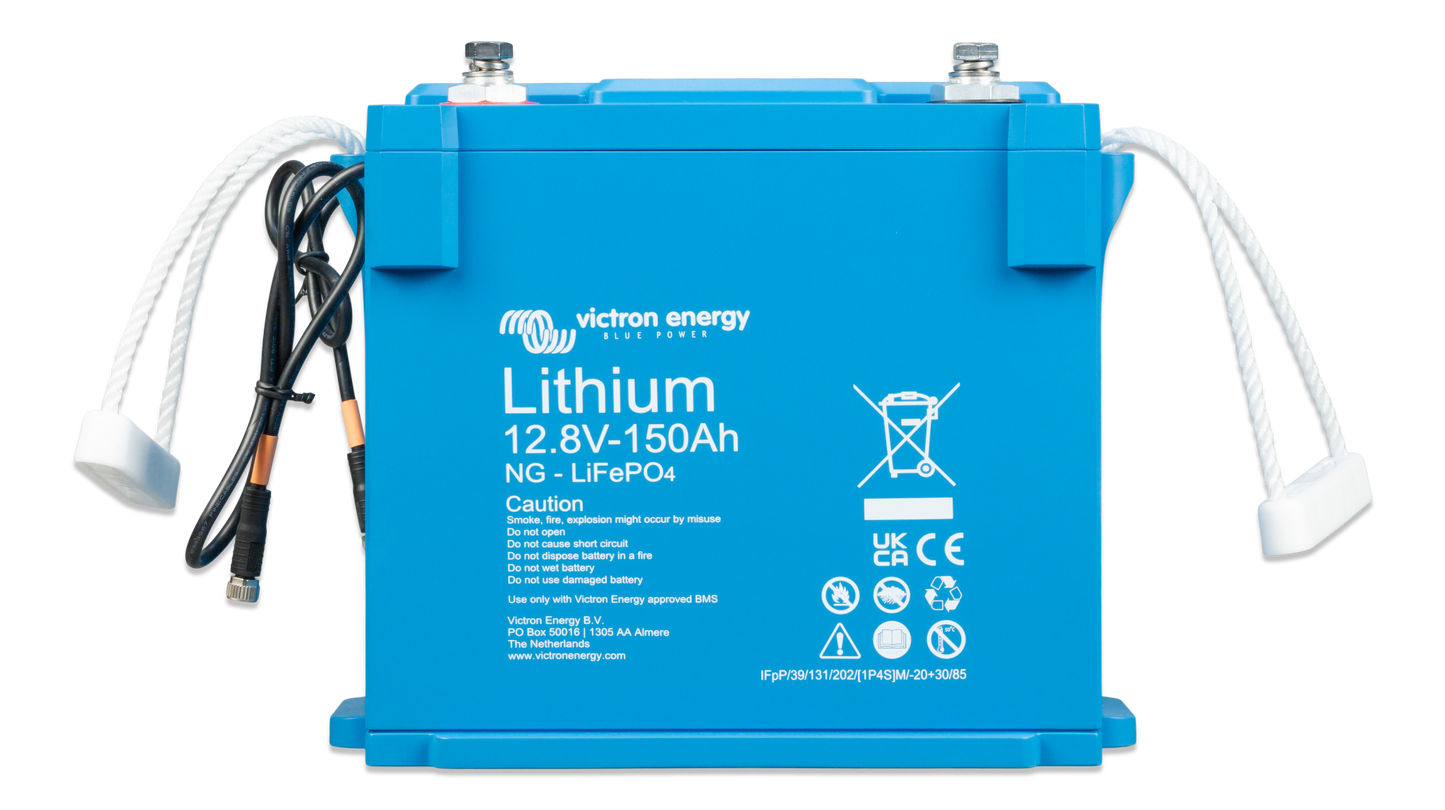

Victron BAT512115620 Lithium NG series LiFePO4 Battery 12,8V/150Ah NG

Available Mid August - Get your pre-Orders in now to secure availability

Victron  Lithium NG series LiFePO4 Battery 12,8V/150Ah NG

NOTE: A NG Series BMS is REQUIRED

Building upon the success of Victron's Lithium Smart Series, the NG (Next Generation) series incorporates significant enhancements.

Highlights:

• Multiple improvements including added read-out of cell voltages and temperatures;
• Maximum single bank size increased to 385kWh;
• Modules available in 12, 24 and 48V;
• Protection class IP65;
• Bracket mounting and strap mounting.

Tailored for those seeking advanced and reliable energy storage, the Lithium NG series marks a pivotal advancement in our product lineup, ready to meet the demands of tomorrow.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO₄ or LFP) batteries
available in various capacities with nominal voltages of 12.8 V, 25.6 V and 51.2 V. They can be connected in series, parallel, or a combination of both to create battery banks for system voltages of 12V, 24V, or 48V. A maximum of 50 batteries can be used when configuring a bank with 12V or 24V batteries, while up to 25 batteries can be used with 48V batteries. This allows for a maximum energy storage capacity of 192 kWh with 12V batteries, up to 384 kWh with 24V batteries, and 128 kWh with 48V batteries.


Lithium NG battery datasheet
